Ver. 1.0  January 23, 2026

Applications

Mobile Pipeline^® TITAN^® modules with Smart Controls.

Procedure

 WARNING  Do not operate Smart Controls module with an extension cord plugged into the battery charge port.

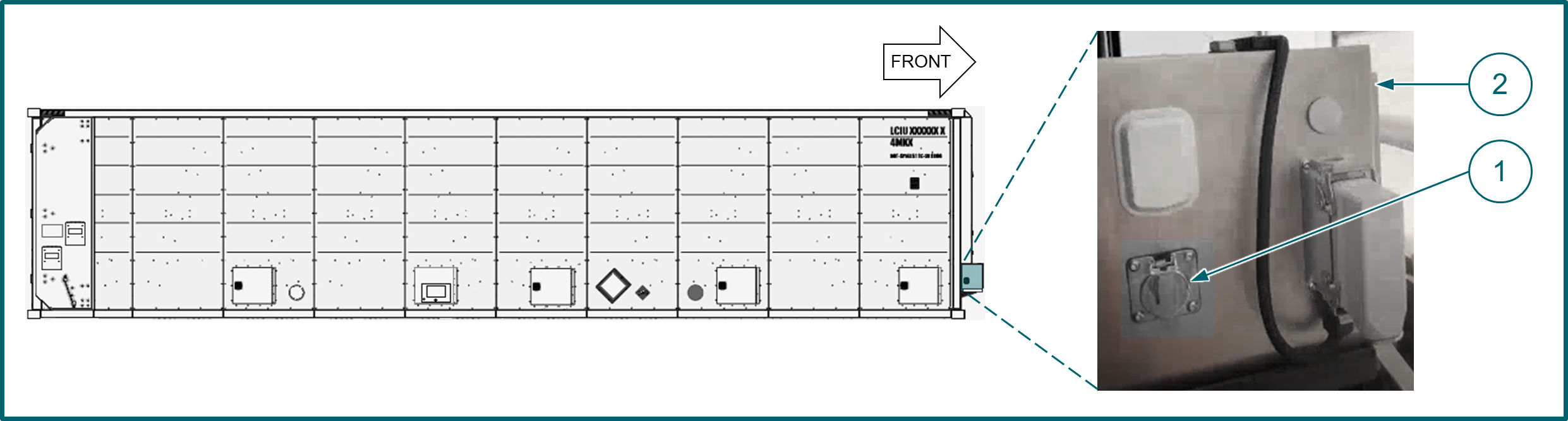

1. If a ground fault current interrupter (GFCI) equipped 120VAC power outlet is present on site, plug an extension cord rated for outdoor use by an independent testing laboratory into battery charge port (1) on PDM enclosure (2).

 WARNING

► Confirm extension cord gauge and length are listed for 15 amp use.

► Inspect cord and ends for damage or a missing ground prong before and after each use.

2. When charging is complete, onboard charging unit will continue trickle charging to maintain charge level.

3. Remove and stow extension cord.
