Description
Classification zones compliant with National Fire Protection Association (NFPA) 2, 52 and 70. Refer to NFPA 70 (E), National Electrical Code Handbook, §500.5, 2023 for more information.

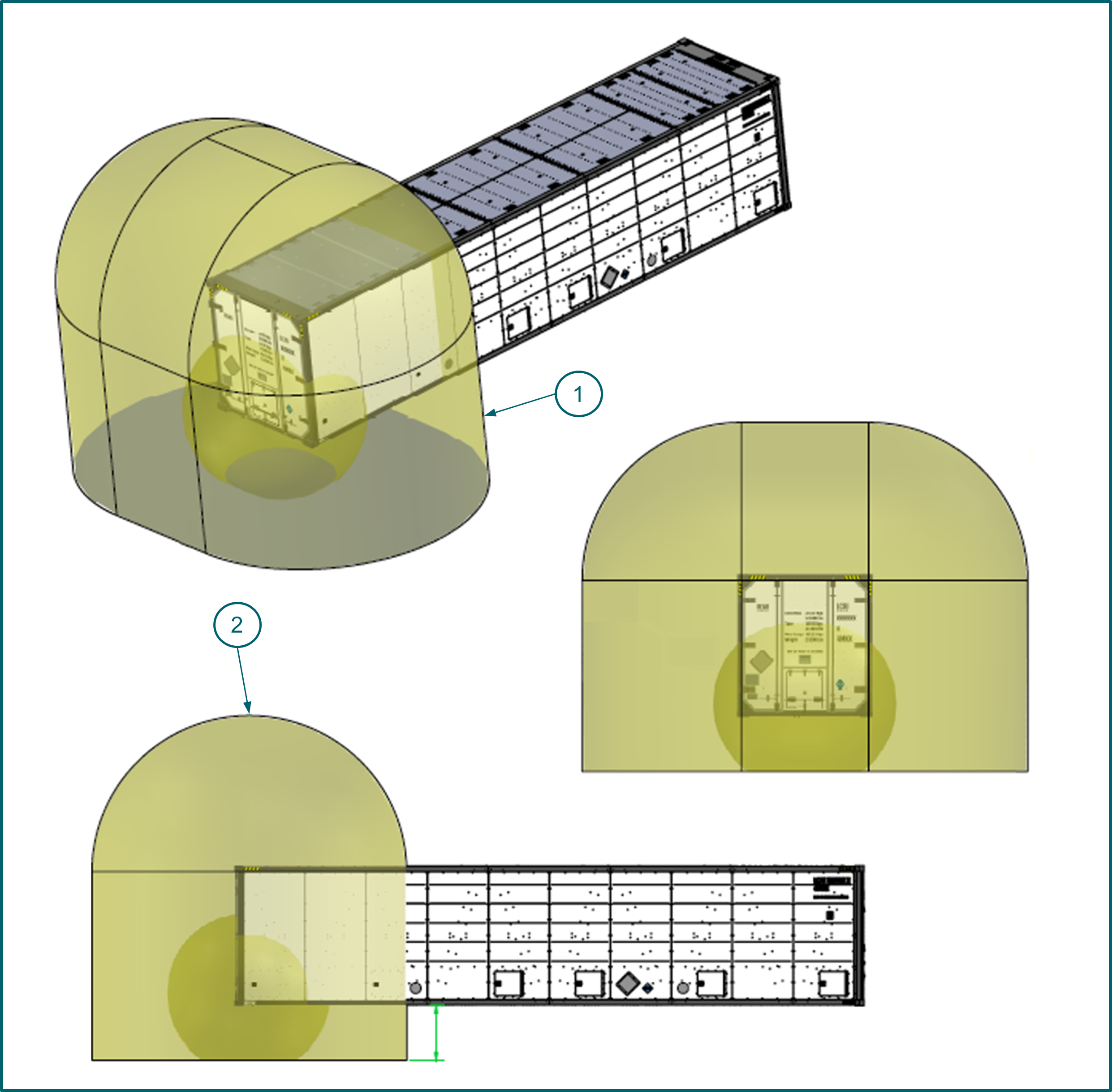

Hazardous Zones – Fill & Decant Processes
Item | Description |
| Zones | Color |
1 | Doors |
| Class I Div. II | yellow |
2 | 10’ radius around doors |
|
|
|
3 | Zone extends to ground surface |
|
|
|

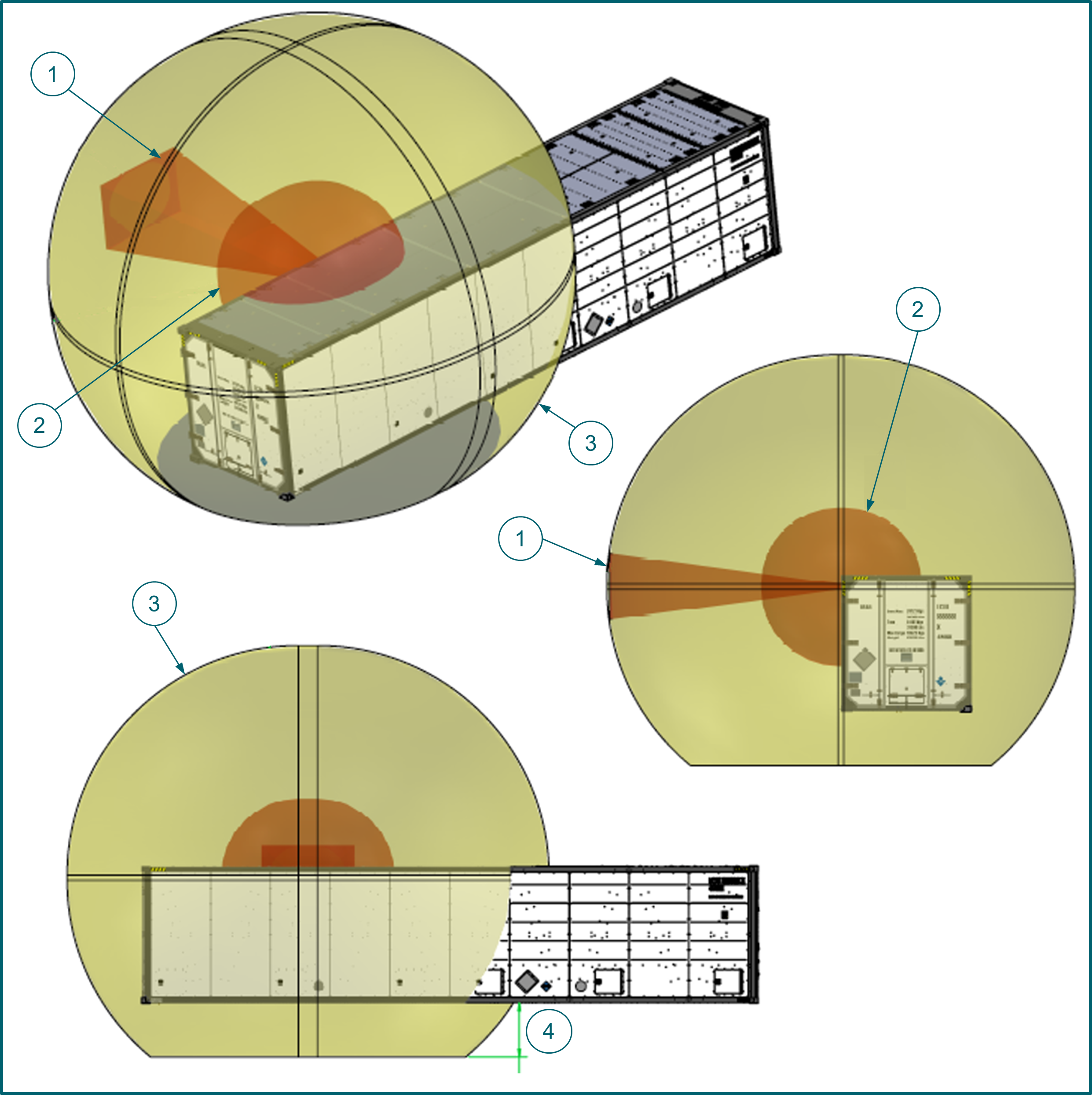

Hazardous Zones – Venting Processes
Item | Description |
| Zone | Color |
1 | Line of discharge – 15' & 15° from vent |
| Class I Div. I | red |
2 | Vent 5’ radius from vent |
| Class I Div. II | yellow |
3 | Vent 15’ radius from vent |
|
|
|
4 | Zone extends to ground surface |
|
|
|
